Drawings are where a design stops being an opinion. Every dimension, every switch, every ceiling drop — fixed on paper, so nobody on site has to guess.

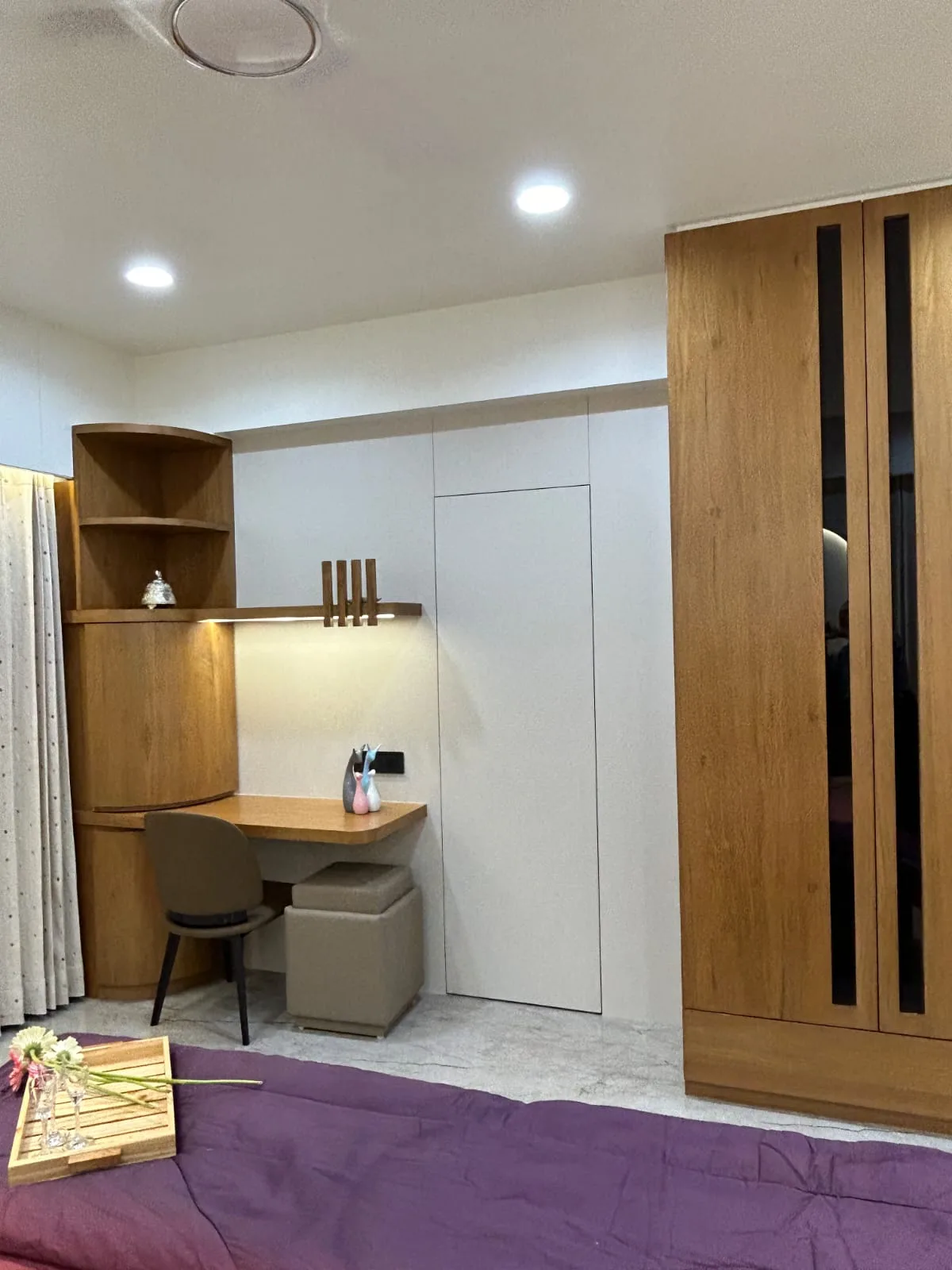

Bedroom study corner and fitted wardrobe built exactly to a dimensioned working drawing

Turnkey — 2D Drawings

The site does not build
a render. It builds this.

Across ten years and 500-plus projects in Ahmedabad, almost every problem we have seen on a site traced back to the same thing: a decision that was never drawn. So we draw all of them.

Furniture positions, unit widths, shutter divisions, plinth heights, ceiling drops, socket centres, tap centres, tile start-lines. Each sheet carries dimensions, a title block and a revision number, and the carpenter on site works from the same sheet the factory does.

  • General furniture layout
  • Flooring & skirting plan
  • False-ceiling & drop-level plan
  • Electrical point & switching plan
  • Plumbing point drawing
  • Internal elevations, unit by unit
Request a Drawing Set

Scope

Everything a drawing
has to settle.

If it is not on a sheet, it will be improvised on site — and improvisation is the most expensive material in interiors.

  • Dimensioned floor plan with clear circulation widths
  • Furniture layout with real product footprints
  • Carcass sizes, shutter splits & handle positions
  • Reflected ceiling plan with light & diffuser positions
  • Switch, socket, data & TV point drawing
  • Plumbing inlet, outlet & drain point drawing
  • Tile setting-out, joint lines & skirting details
  • Wall elevations for panelling, TV walls & headboards
  • Section details for tricky junctions & profiles
  • Revision log so the site always knows the current sheet
Modular kitchen built to a working drawing with appliance points and tile lines pre-set

Coordination

One layout, and every
trade reads from it.

The kitchen is where uncoordinated drawings show up fastest. A chimney point too low, a hob socket behind a drawer bank, a water inlet that lands inside a carcass panel.

We resolve those on the sheet. Appliance cut-outs, service points, tile start-lines and carcass modules are drawn together and checked against each other, so the electrician, the plumber, the mason and the factory are all working to one agreed set of numbers.

  • Appliance & cut-out coordination
  • Service points behind units
  • Counter & splashback heights
  • Module-to-tile alignment
  • Ceiling drops vs tall units
  • Issued-for-production sign-off
